Figure 8 Knot

Back to interactive Figure 8 Knot
  figure8_knot
figure8 knot rotate 001

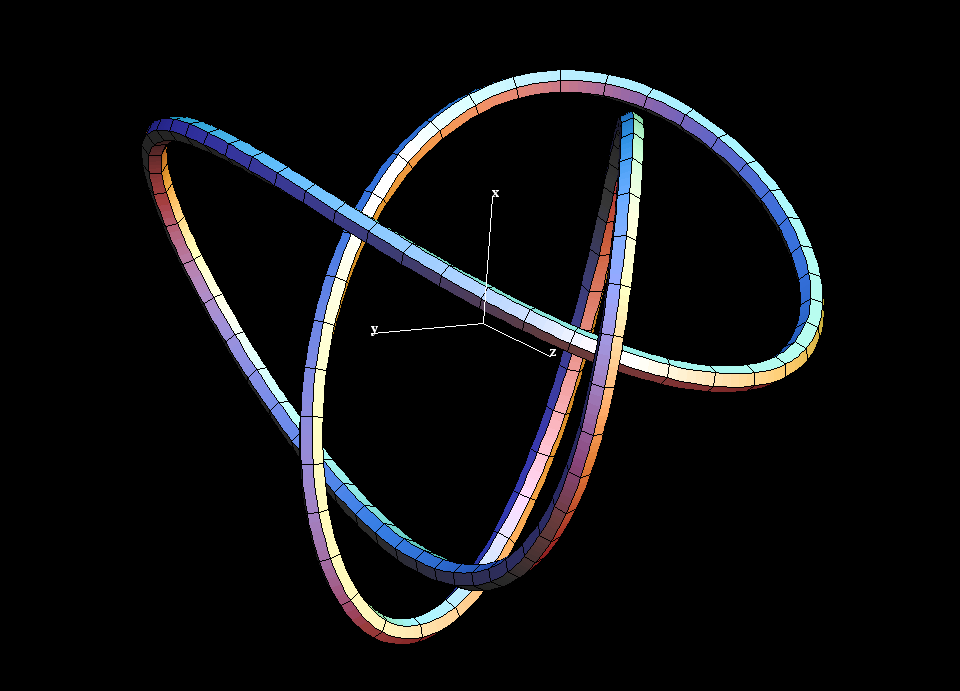

Figure8 knot, rotating sequence
The figure 8 knot and its mirror image are the only "alternating" knots with 4 crossings. Overpass- and underpas-crossings alternate for such knots. They cannot be drawn with fewer crossings. During the rotation we have also projections with more than 4 crossings, which are of course not alternating.
figure8 screw4

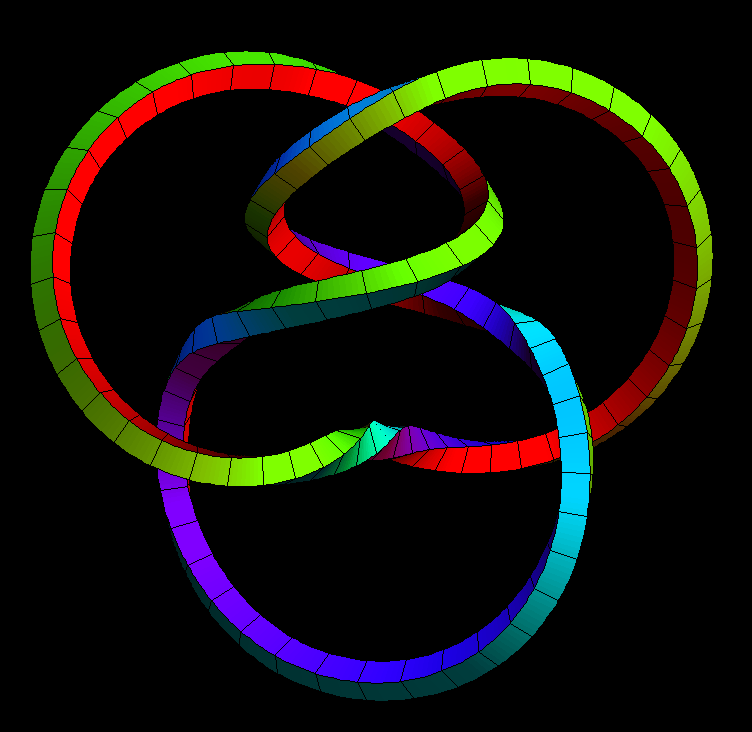

Figure 8 knot obtained by twisting one leaf of a trefoil knot.
It is a different view of the figure 8 knot, also "alternating". Since the threads are twisting around each other (counter clockwise) in the middle portion, one can "see" that this knot is different from its mirror image.
figure8 harmonic

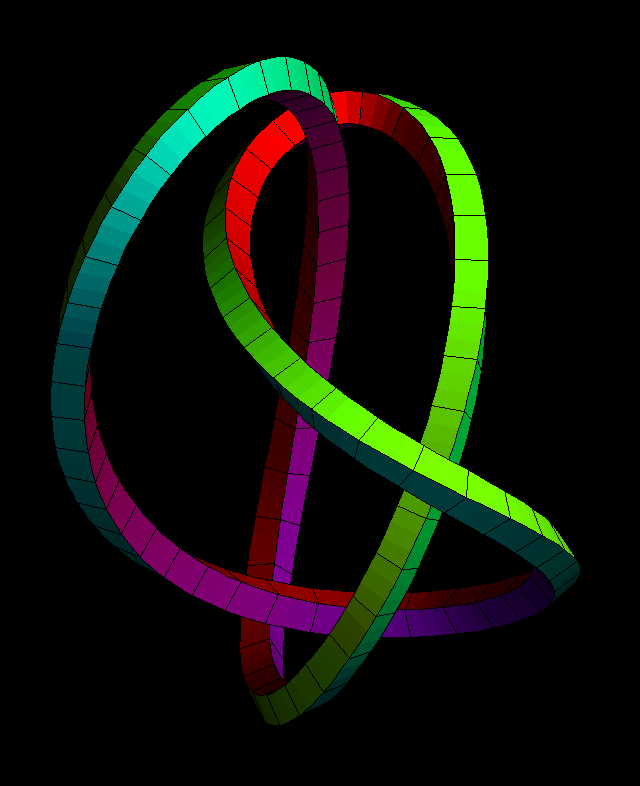

The image is of a so called “harmonic knot” or "Fourier knot", a curve whose coordinate functions are trigonometric polynomials.
figure8 satellite ana 001

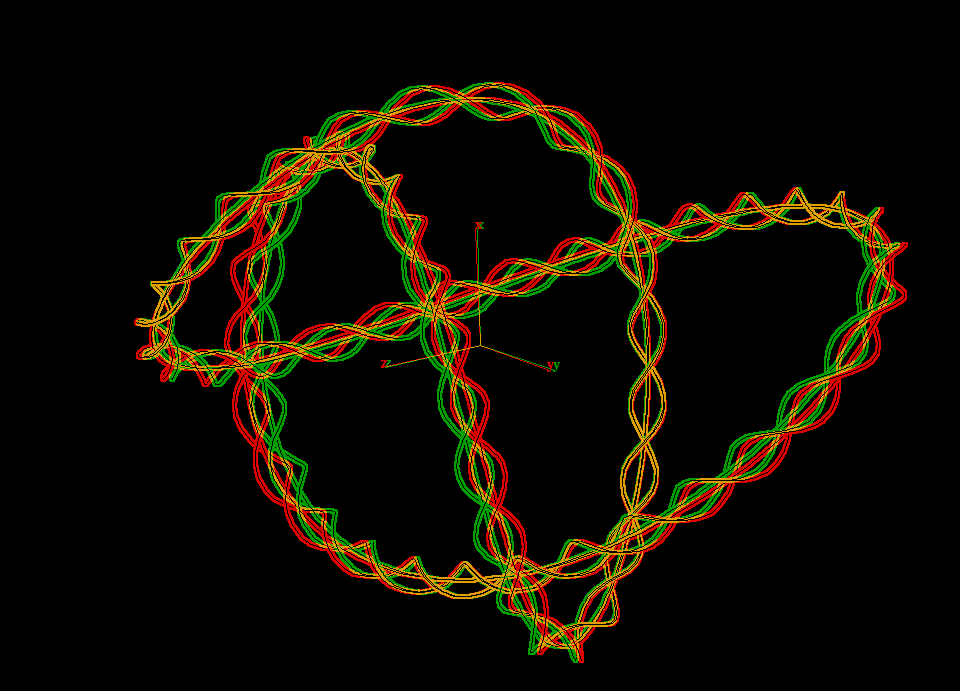

Anaglyph Rendering of figure 8 knot with so called "satellite knot".
The picture shows a 61-2-satellite, which means: while it runs along the figure 8 knot 2 times around, it circles the knot curve 61 times. Satellite knots are a simple way to construct more complicated knots from simpler ones.

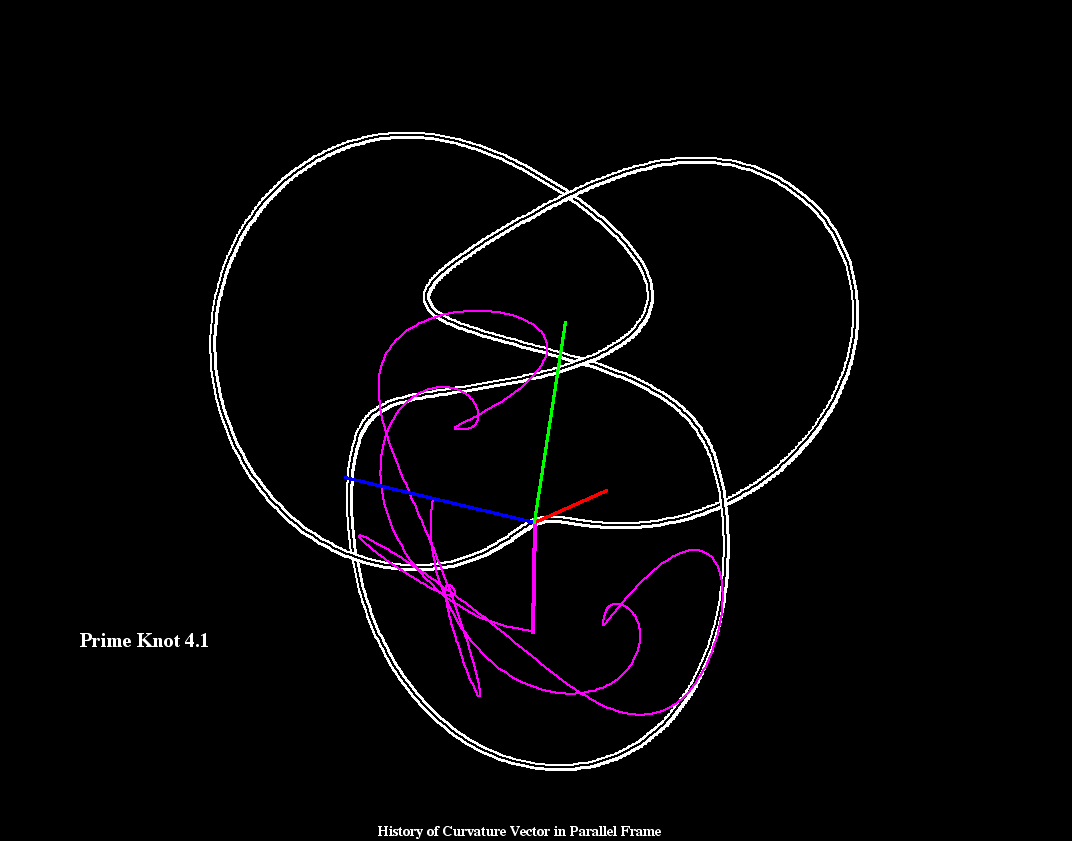

Morph Prime Knots 5 4 120
